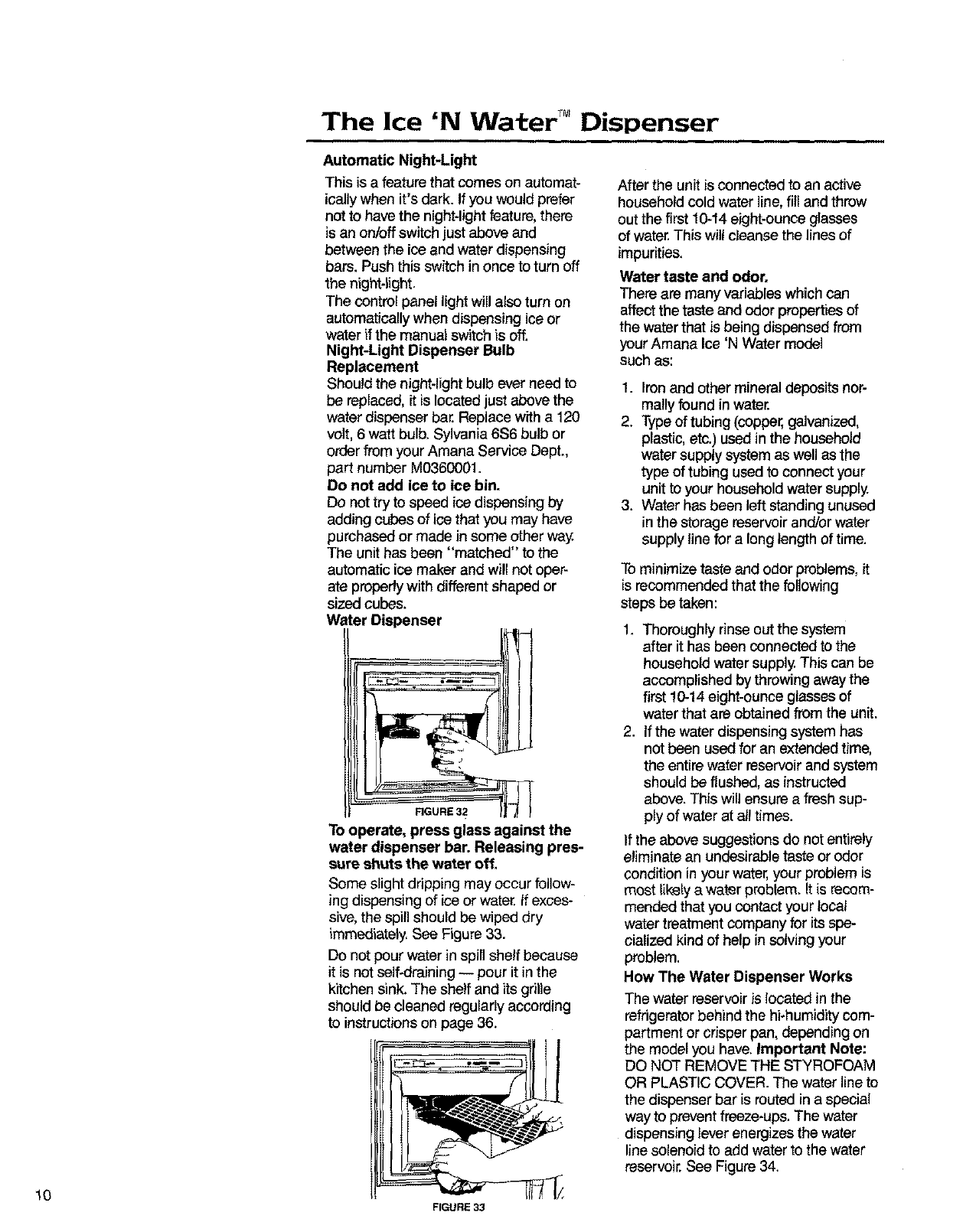

The Ice 'N Water Dispenser

Automatic Night-Light

This is a feature that comes on automat-

icallywhen it's dark. If you wouldprefer

notto have the night-lightfeature, there

is an on/offswitchjust above and

between the ice and water dispensing

bare. Pushthis switchinonce to turn off

the night-light

The controlpanel light will also turn on

automaticallywhen dispensingice or

water if the manual swf_chis off.

Night-Light Dispenser Bulb

Replacement

Should the night-lightbulb ever need to

be replaced, it is located just above the

water dispenser bar. Replace with a 120

volt, 6 watt bulb. Sylvania 6S6 bulb or

order from your Amana Service Dept.,

part number M0360001.

Do not add ice to ice bin.

Do nottry to speed ice dispensingby

adding cubes of ice that you may have

purchased or made in some other way

The unit has been "matched" to the

automatic ice maker and will not oper-

ate pmporlywith different shaped or

sized cubes.

Water Dispenser

To operate, press glass against the

water dispenser bar. Releasing pres-

sure shuts the water off.

Some slight dripping may occur follow-

ing dispensing of ice or water. If exces-

sive, the spill should be wiped dry

immediately See Figure 33.

Do not pour water in spill shelf because

it is not self-draining -- pour it in the

k'rtchensink. The shelf and its grille

should be cleaned regularly according

to instructions on page 36.

J

After the unit is connected to an active

household cold water line, fill and throw

out the first 10-14 eight-ounce glasses

of water. This will cleanse the lines of

impurities.

Water taste and odor,

There are many variableswhichcan

affect the taste and odor properties of

the water that is being dispensedfrom

your Amana Ice 'N Water model

such as:

1. Iron and other mineral deposits nor-

mally found in water.

2. Type of tubing (copper, galvanized,

plastic, etc.) used in the household

water supply system as well as the

type of tubing used to connect your

unit to your household water supply

3. Water has been left standing unused

in the storage reservoir and/or water

supply line for a long length of time.

To minimize taste and odor problems,it

is recommended that the following

steps be taken:

1. ThorOughly rinse out the system

after it has been connected to the

household water supply.This can be

accomplished by throwing away the

first 10-14 eight-ounce glasses of

water that are obtained from the unit.

2. If the water dispensing system has

not been used for an extended time,

the entire water reservoir and system

should be flushed, as instructed

above. This will ensure a fresh sup-

ply of water at all times.

If the above suggestions do not entirely

eliminate an undesirable taste or odor

condition inyour water, your problem is

most likely a water problem. It is recom-

mended that you contact your local

water treatment company for its spe-

cialized kind of help in solving your

problem.

How The Water Dispenser Works

The water reservoir is located in the

refrigerator behind the hi-humidity com-

partment or crisper pan, depending on

the model you have. important Note:

DO NOT REMOVE THE STYROFOAM

OR PLASTIC COVER. The water line to

the dispenser bar is routed in a special

way to prevent freeze-ups. The water

dispensing lever energizes the water

line solenoid to add water to the water

reservoir. See Figure 34.

10

FIGURE 33
