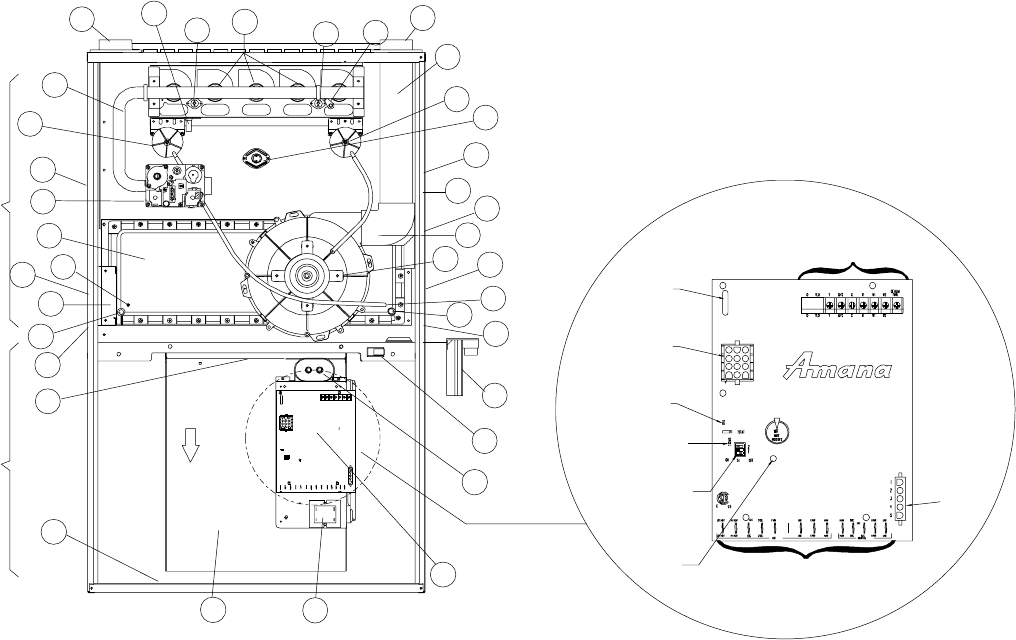

COMPONENT IDENTIFICATION

GUSA___BX__ (Manufacturing Numbers P1239502-06F and P1242002-06F)

Integrated Control Module

17 Two-Speed Induced Draft Blower

18 Electrical Connection Inlet (Alternate)

19 Coil Front Cover Pressure Tap

20 Coil Front Cover Drain Tap

21 Drain Line Penetrations

22 Drain Trap

23 Blower Door Interlock Switch

24 Capacitor

25 Two-Stage Integrated Control Module

(with fuse and diagnostic LED)

26 Transformer (40 VA)

27 Circulator Blower

28 Bottom Return Filter Retainer

29 Auxiliary Limit

30 Junction Box

31 Electrical Connection Inlet

32 Coil Front Cover

Upflow/Horizontal

1 Two-Stage Gas Valve

2 Gas Line Entrance (Alternate)

3 Pressure Switch(es)

4 Gas Manifold

5 Combustion Air Intake Connection

6 Hot Surface Igniter

7 Rollout Limit

8 Burners

9 Flame Sensor

10 Flue Pipe Connection

11 Flue Pipe

12 Combustion Air Intake (Alternate)

13 Primary Limit

14 Gas Line Entrance

15 Flue Pipe Connection (Alternate)

16 Rubber Elbow

BLOWER COMPARTMENT BURNER COMPARTMENT

Intell-Ignition

Diagnostic

Red LED

Heat OFF Delay

DIP Switches

Thermostat

Selection Jumper

(Single vs. Two -Stage)

Low to High

Stage Delay

DIP Switch

12 Circuit

Connector

Fuse

(3A)

24 Volt Thermostat

Connections

5 Circuit

Connector

Circulator Blower, Transformer

and Accessory Quick Connects

1 2 3 4 5 6 7 8 9 10 ... 15 16
