6 Rev. 2

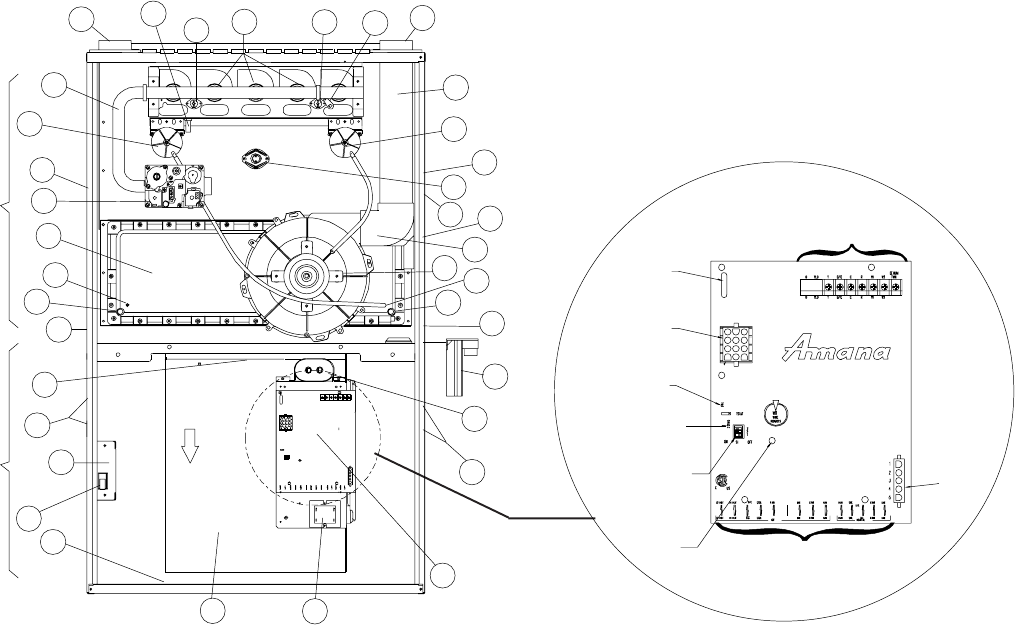

COMPONENT IDENTIFICATION

1 Two-Stage Gas Valve

2 Gas Line Entrance (Alternate)

3 Pressure Switch(es)

4 Gas Manifold

5 Combustion Air Intake Connection

6 Hot Surface Igniter

7 Rollout Limit

8 Burners

9 Flame Sensor

10 Flue Pipe Connection

11 Flue Pipe (Internal)

12 Combustion Air Intake (Alternate)

13 Primary Limit

14 Gas Line Entrance

15 Flue Pipe Connection (Alternate)

16 Rubber Elbow

17 Two-Speed Induced Draft Blower

18 Coil Front Cover Pressure Tap

19 Coil Front Cover Drain Tap

20 Drain Line Penetrations

21 Drain Trap

22 Capacitor

23 Electrical Connection Inlets (Alternate)

24 Two-Stage Integrated Control Module

(with fuse and diagnostic LED)

25 Transformer (40 VA)

26 Circulator Blower

27 Bottom Return Filter Retainer

28 Blower Door Interlock Switch

29 Junction Box

30 Electrical Connection Inlets

31 Auxiliary Limit

32 Coil Front Cover

GUSA___BX__ (Manufacturing Numbers P1233902-06F)

Upflow/Horizontal Integrated Control Module

BLOWER COMPARTMENT BURNER COMPARTMENT

1

2

3

4

5

6

7

8

7

9

10

11

3

12

13

14

1

5

16

17

18

19

2

0

22

23

29

24

25

26

27

30

31

2

1

20

19

18

32

28

Intell-Ignition

Diagnostic

Red LED

Heat OFF Delay

DIP Switches

Thermostat

Selection Jumper

(Single vs. Two -Stage)

Low to High

Stage Delay

DIP Switch

12 Circuit

Connector

Fuse

(3A)

24 Volt Thermostat

Connections

5 Circuit

Connector

Circulator Blower, Transformer

and Accessory Quick Connects
